Area Scanner
Flächenscanner

The area scanner is used for non contact measurement of strain or compression of specimen at uniaxial load. Thereby the strain can be measured distributed over the specimen area.

Therefore a parallel scanner is extended with a moveable mirror. This allows to displace the scan beam horizontally. So it is possible to measure the strain at up to 250 discrete positions.

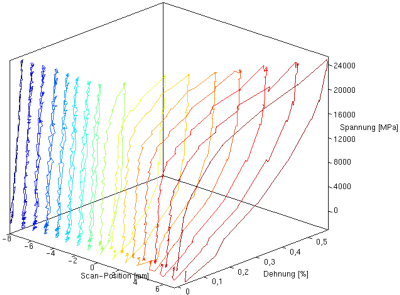

3D-Diagramm

Technical Data Area Scanner
Scan Range on Specimen 50 mm (vertical) / 250 mm (horizontal)
Working Distance 100..300 mm
Resolution (micron) 0.1 µm
Accuracy ± 2µm
Scanning Rate 200 Hz
Duration of each Scan at Specimen 2.5 ms
Specimen Surface plane or
structured
(components)
